| Used Parts New | All F codes Standard sizes | All | White wire is for Hot Line for Korean Make (SS, LG..) | |||||||

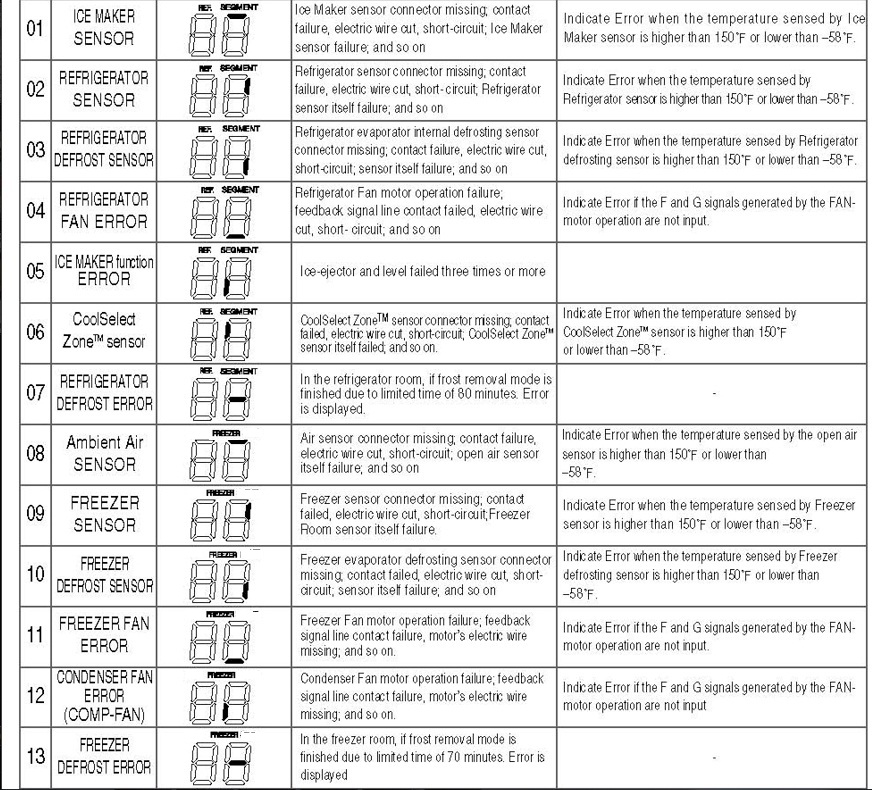

| Refrigerator | Commercial | SS Error Codes, SS French door Error Codes SS Decodes, Alpine Yogurt, Commercial Relay overload wiring Compressor Terminal | ||||||||
| Yogurt Machines | ||||||||||
| IceMachine.htm |
syntax <a href="picture.jpg">Title</a></td> Eg.
<a href="HeatPumprewriring.jpg">Defrost Rewiring</a></td> ( </td> = new
line)
(link website used hyper link OK) <a href="WhirlpoolIMaker.pdf">Whirlpool</a></td> |
|||||||||
| Washer | Whirlpool Duet W | SamSung | ||||||||
| Dryer | Water valve: WH=831Ω, YL=820Ω, Counter=0.9Ω, Wter pump=17Ω | |||||||||
| StoveOven | Compete Freeon | |||||||||
| Dishwasher | ||||||||||

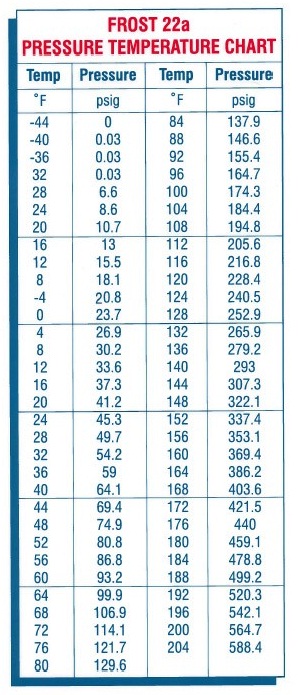

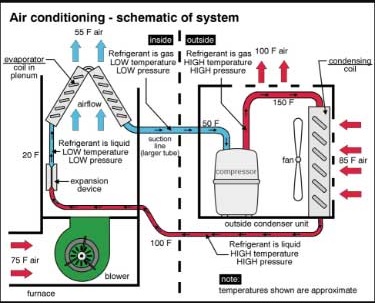

| AC_Heating | Heat Pump_ R 22A , AC mechanical | ACSystemMchnical | [38_40] psi for 138A to car AC | |||||||

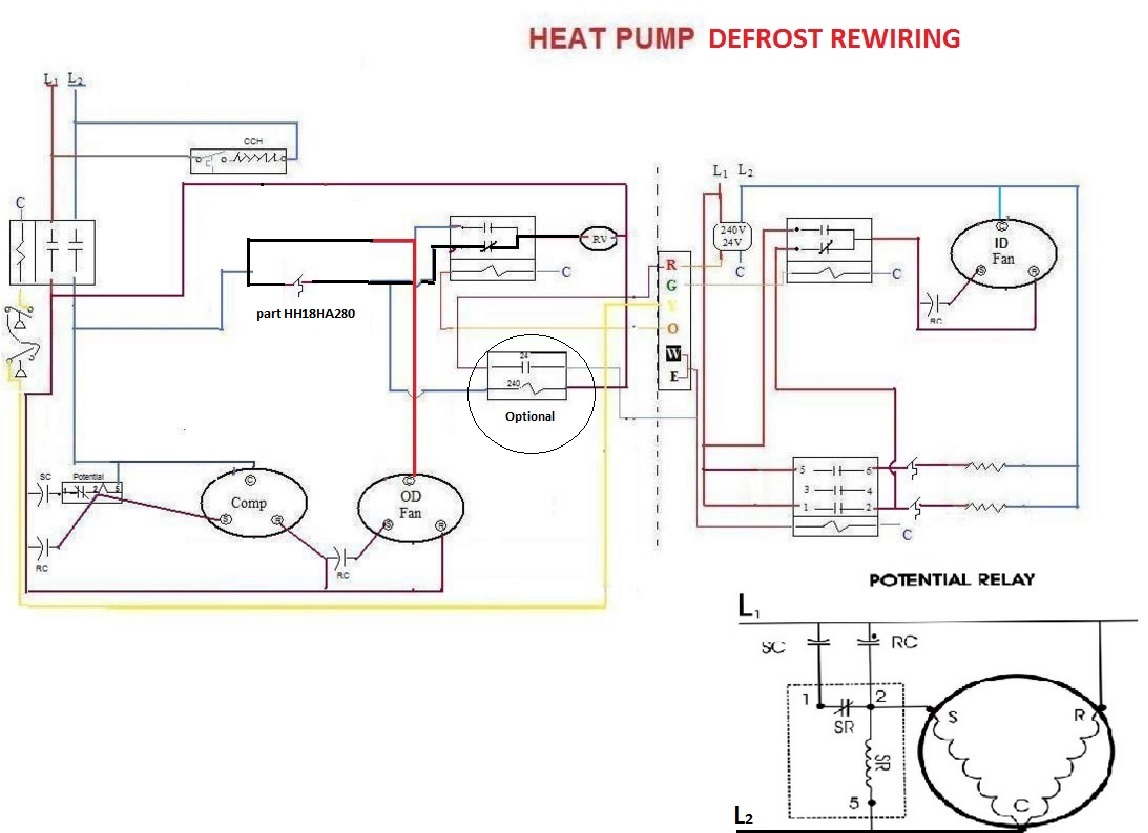

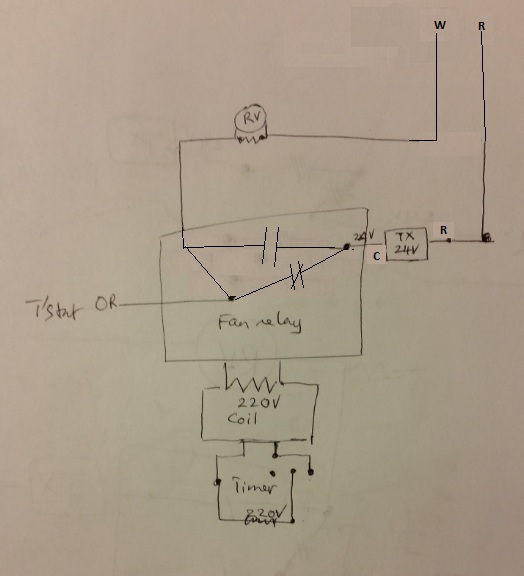

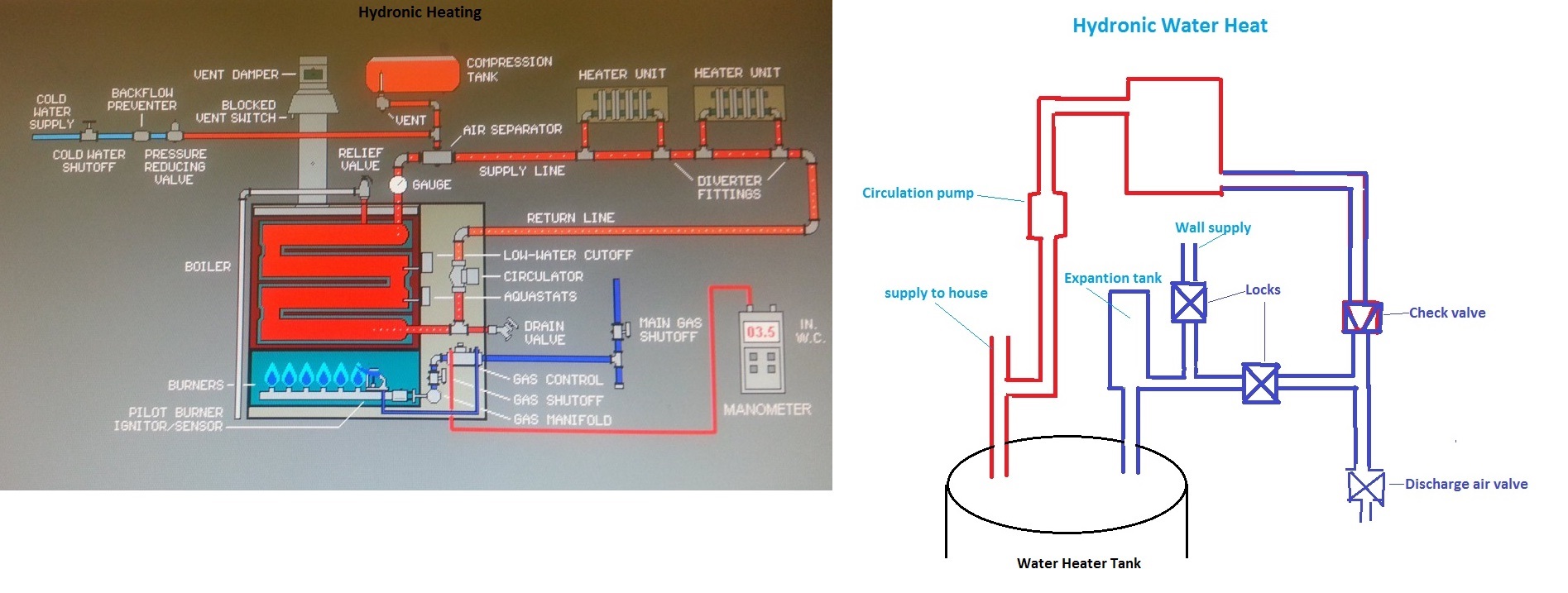

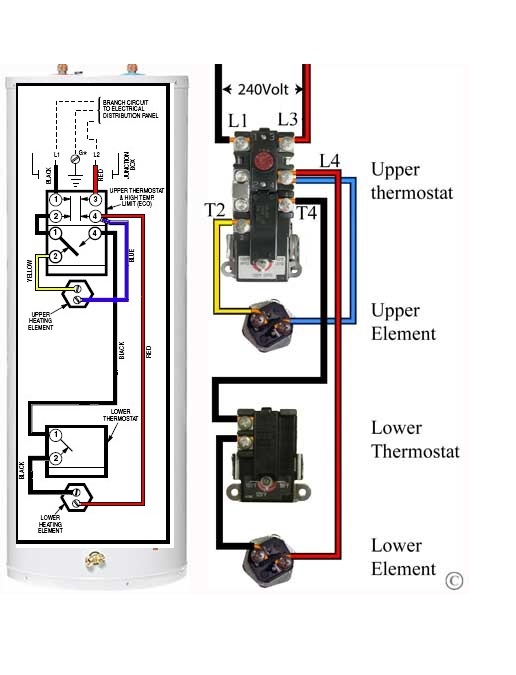

| Heating | Wiring: Electrical Gas Hydronic , Heatpumpheatwiring Fan Relay for RV by modified, Heat pump Defrost Rewiring | |||||||||
| Plumbing. WterHterTstat wiring | Electrical (GE) : Thermostat test: Set highest temperature (and the other thermostat lowest temp). If the highest has no current (or two heater terminals = 0 volt)=> bad thermostat [heater=4500 watt =>I=18.5Amps, R=12.5Ohms] | |||||||||
| Garage door | Wayne Dalton | |||||||||
| Installation | ||||||||||
| Notes: All Wirings | ||||||||||
| Measurement | Electrical 3WaySwitch | All | short socket=plain=hot; long socket=stripe=neutral | |||||||

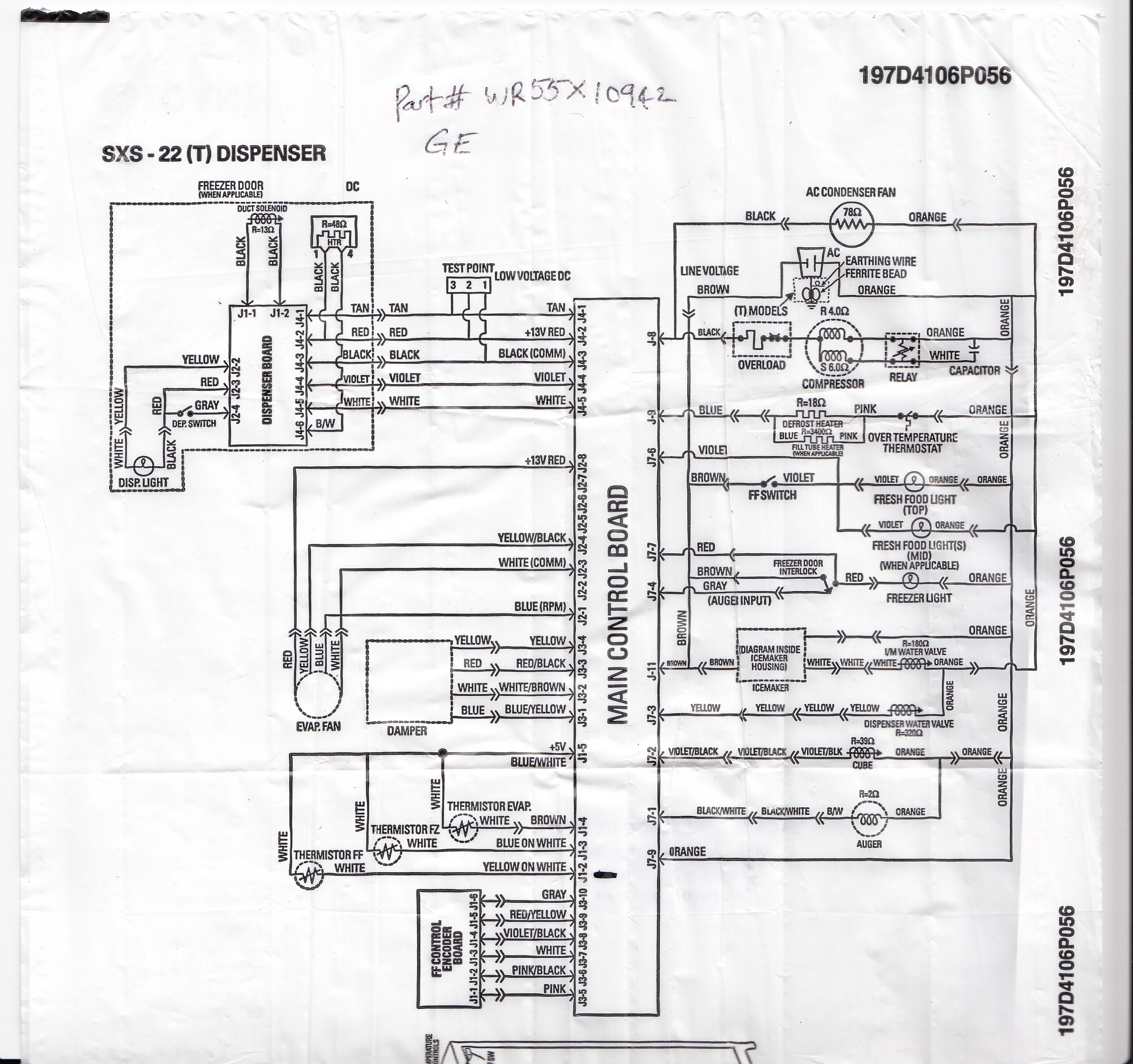

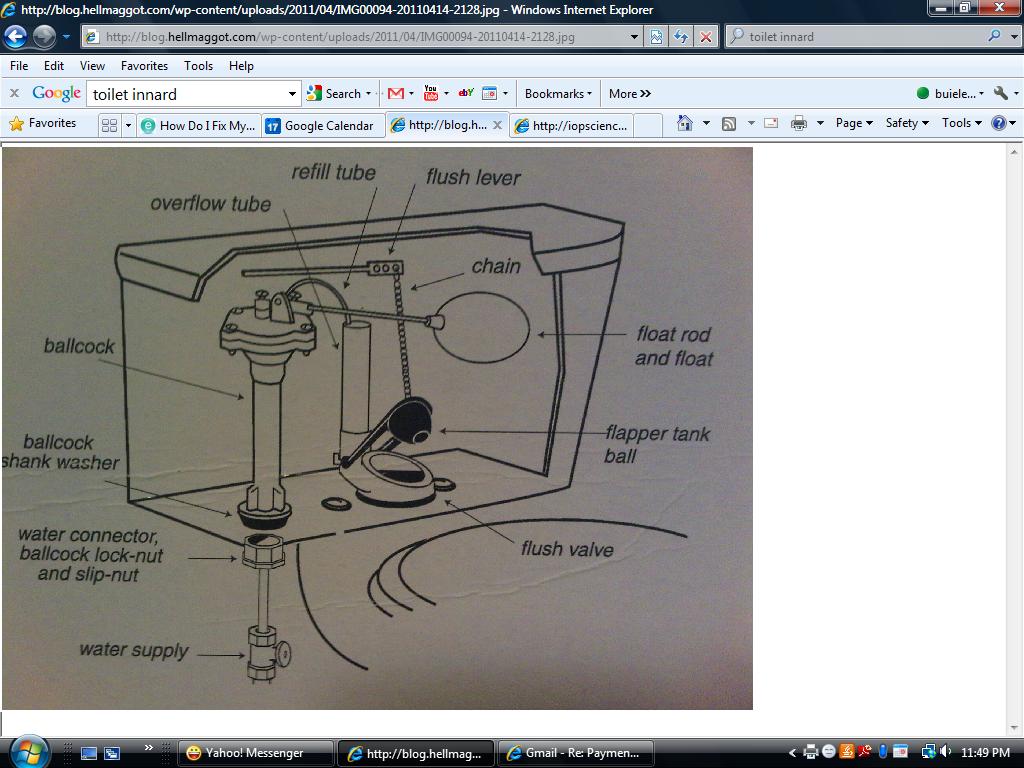

| Diagrams | GE(Fridge), ToiletTank | |||||||||

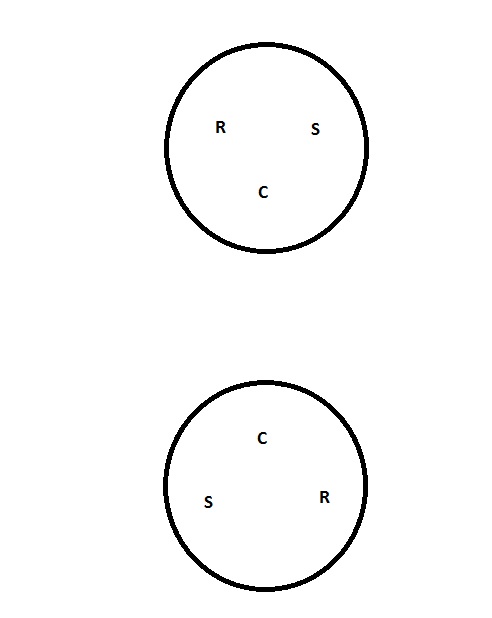

| Motor, Compressor | C(highest Ω), S (higher), R (lowest), SS fridge C(top), S(Right), R(left). Home fridge [1/3_1/4 HP] | |||||||||
| Defrost Timer | ||||||||||
| Analog | All | 3 (Com, N), 4 (Comp), 1 (M, L), 2 (Def), M(3_1)=20k*77Ω | ||||||||
| ADC ( adaptor def ctrl) | Whirlpool | T'stat=PK(2)_BR(5); Heater=BR(5)_WH(6); Tstat+Heater=PK(2)_WH(6) | ||||||||
| Maytag | Wh_Or= uncontinuity=> |
|||||||||
| Wh_Rd= uncontinuity=> Bad ADC | ||||||||||
| Wh/Bk_Yl= Heater | ||||||||||
| Wh/Bk_Rd (TperatureCtrl closed)=>Defrost T'stat | ||||||||||
| Yl_Rd (TperatureCtrl closed)=> Heater+Defrost T'stat | ||||||||||
| Yl_Or (Compressor Cycle)=> Heater+Defrost T'stat | ||||||||||
| Timer on board | Whirlpool | MB on top | 3(Wh)-2(Br)=24Ω=> Def Heater OK |WH BR| |RD OR BK PK| | |||||||
| 2(Br)_5(Pk)=1Ω=> Def T'stat OK | ||||||||||
| 3(Wh)-5(Pk)=24Ω=> Def Heater+ T'stat OK | ||||||||||
| Icemaker | Whirlpool (pdf) |
Regular: T_H for 15s, if not dump out=>bad T'stat or heater (73.0Ω)
or motor (20k*04.5Ω)=>
replace a new; V_L, no water filling in =>bad valve, and then L_N = 120V,
M_L for Motor (20k*7.3Ω). For Optics Switch : 1.Flapper released : light is blinking twice and then off for one second repeatedly=>OK. If no light=> icemaker is in the harvest mode (press freezer door switch=> flashing once/s) or optics bad. 2. Flapper pressed: light is on continuously=> the optics OK; the light blinks once, then a one second delay=>optics bad. At the eye board, Bk wire is 120 v in, and Bk/wh wire is 120 v out. Intensive Test Click Here |
||||||||
| GE | Locate L first, then if A=hot, B_D=water valve (180Ω), and A_D=195Ω (?). Motor= 2k*0.5Ω | |||||||||
| Dispenser | WP | The dispenser motor works under 120 VDC from DISPENSER BOARD through the BR/WH and RD/WH wires. On the cube position, the BR/WH= positive and RD/WH= negative. Test pink 1_2 (BR/WH_ RD/WH)=+-2.2VDC=56.7Ω= OK; RD/WH_PK=0.3VDC=OK; BR/WH_BL=2.5VDC; PK_BL=14Ω=2.9VDC=OK | ||||||||
| GE | Solenoid=33.5Ω; Motor=3.3Ω | |||||||||
| Fan | WP | Evaperator is very low high Ω, so just check voltage inlet.(120ACV) | ||||||||
| GE | BK_RD=150kΩ (very high Ω, around 1.5W, 12DCV) | |||||||||
| Diaffer | RD_WH=WH_BK=450Ω | |||||||||
| Refrigerator | Samsung | Sensors |
|
|||||||
| Motors | Vcc_BLK (F), Vcc_BRN (R), Vcc_RED (Cooling) | |||||||||
| Compressor fan=77.0Ω, Cond fan =81Ω, E fan =108Ω, Auger=4Ω | ||||||||||
| Valve | Dispenser=398Ω, I/M=391Ω | |||||||||
| Heater | Ice pipe=44.4ΩC, Def=49Ω, Water tank=1655Ω, Comp sys= | |||||||||
| Wter tank Hter | R=4300Ω (FF heating element) | |||||||||
| Whirlpool | Thermistor | To Room => R=20k*1.9Ω | ||||||||
| GE | Thermistor | To Room => R=20k*2.9Ω | ||||||||
| GE Reg | Con fan (AC) | R=78Ω | ||||||||
| Com Motor | Run=4.0Ω , Start=6.0Ω | |||||||||
| Heater | Def=18Ω | |||||||||
| Microwave | GE | Wall built-in | Relay onboard=120 ACV, Door Sw=27 DCV, Heater=5 DCV, Ssor=4.4 DCV | |||||||
| Water Valve | Refrigerator | All | I/M=180Ω ; Dispenser = 320Ω, | |||||||
| Washer | Whirlpool | Topload | Hot=Cold=2k*0.874 | |||||||
| GE | Topload | Hot=Cold=2k*1.046 | ||||||||
| Dishwasher | 2k*1.100 | |||||||||
| Motor | Washer_pump | GE | Topload (reg) | 2000*12Ω | ||||||
| High limit T'stat | Whirlpool | R=0.8Ω | ||||||||
