Test Error Codes
(1) ,
(2) |
Mod |
Code |
Could be |
| |
|
|
| Frigidaire |
Affirmative |
Diagnostic Mode:
Press and HOLD the Start/Pause and Cancel buttons simultaneously. |

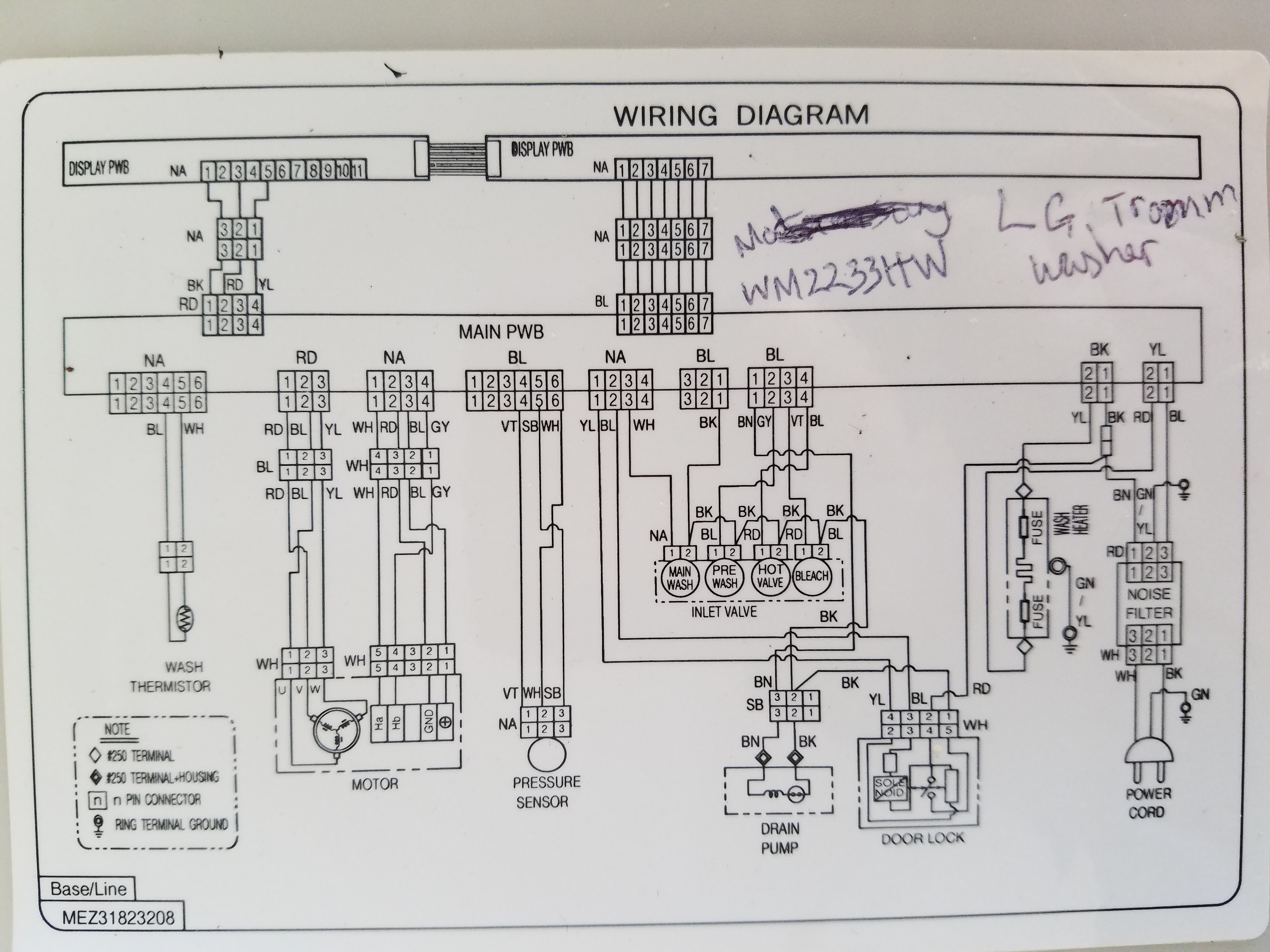

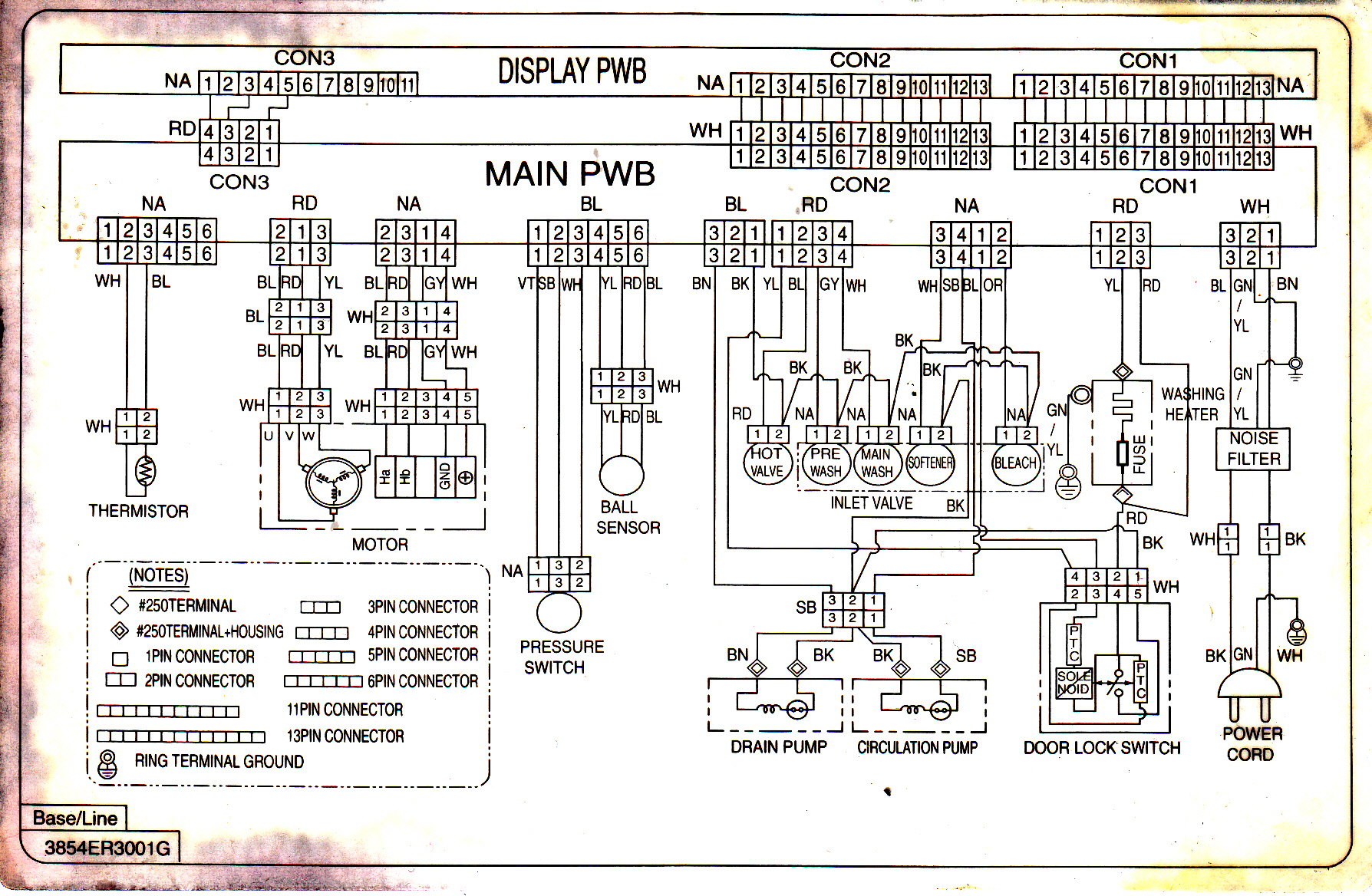

| LG Tromm Wiring,
LG Manual |
WM2487HRM |

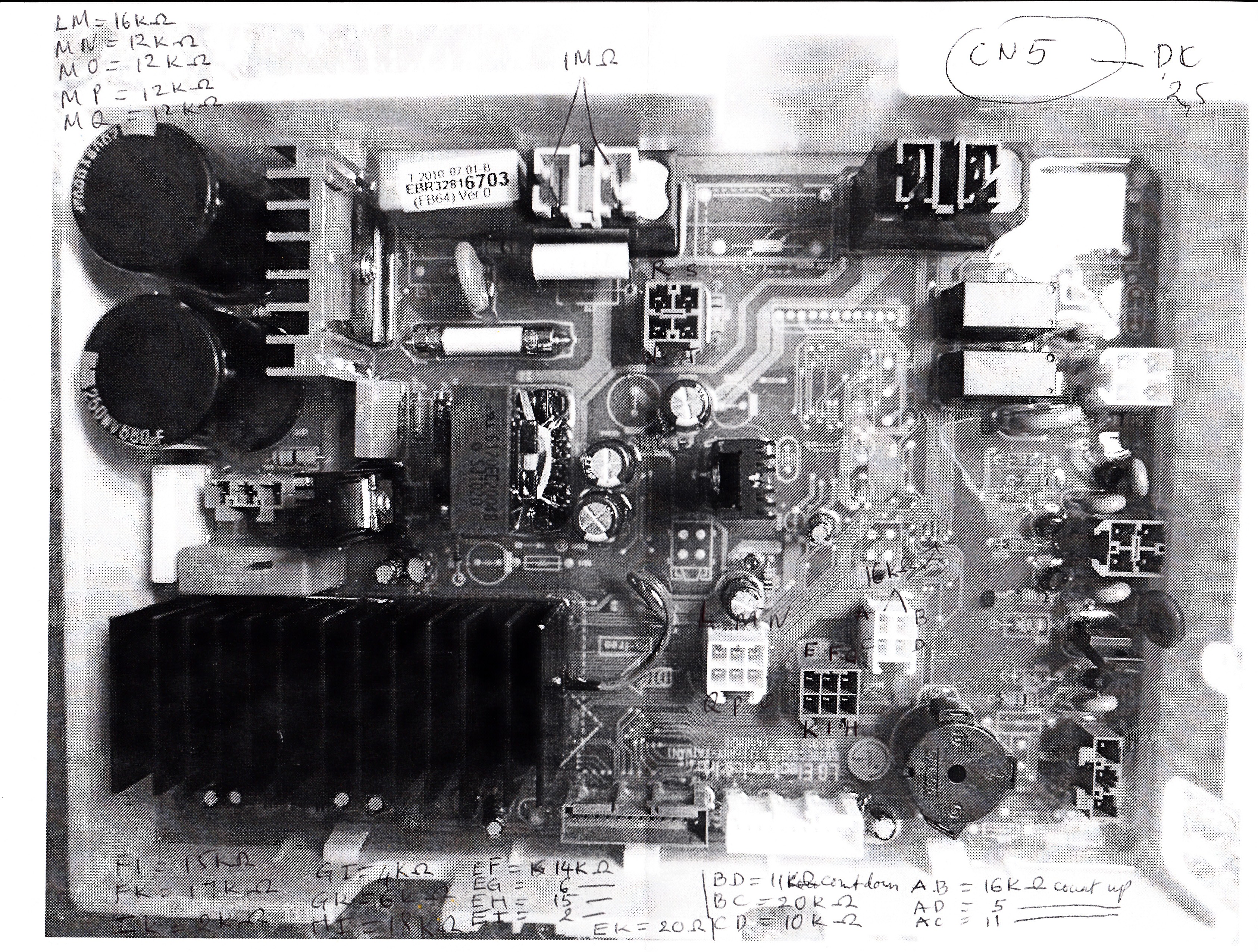

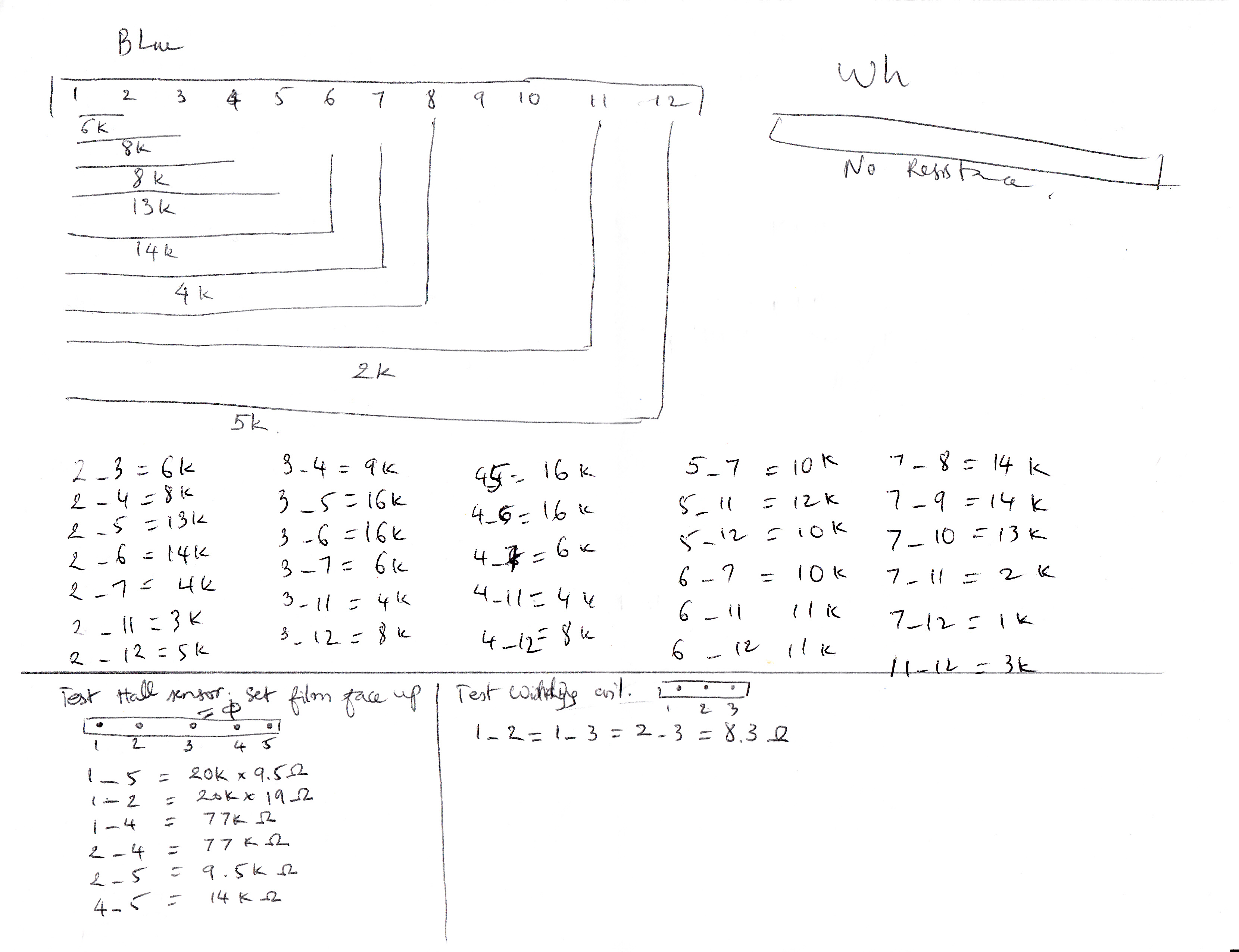

LE Check Motor Windings [1_2=1_3=2_3=5_15Ω]
or Hall sensor (lay film face up | 1 2 3=Φ
4 5 | to check 1_5=9.5kΩ, 1_ 2=19kΩ, 1_4=2_4= 77kΩ,
2_5=9.5KΩ, 4_5=14KΩ); Check motor at the connector;
Check voltage output fr Ctrl Board to Mtor and Hall sensor; physical
check before decide PCB. Too long cycle=>bad PCB
WM0532HW Wiring , WM0532HW Wiring |
| Display
not turn on: check led light (1) on PCB lit? check RD-YL = 5 VDC,RD-OR =
12 VDC at 8 pin connector on console. If (1) not lit, check power button;
tE error code=> T'mistor [54kΩ] or Heater
[15Ω] |
|
Diagnostics (VMW) _Vertical Module Washer |
Kenmore Oasis /
Whirlpool Duet hE ( Speed Spin hold 5 nds, release 2 nds, hold 5 nds,
release 2nd, hold 5 nds, release 2nds .
Whirlpool Cabrio
(round knob digital code ) ,
Whirlpool Cabrio
(round knob light code ),Whirlpool
Cabrio
(flat knob)
3 nds intervals On 3_5 / Off 3_5,
Maytag Bravo (metal top_round knob) Hold any button (not power,
start, cancel)) 3 nds intervals On 3/ Off 3, Whirlpool |
|
GE frontload |
Mod WBV..WCV..,WHD
Manual |
|
Kenmore 800 Series |
Not filling, other functions are OK: Temperature
switch (W10292584), Water valve, Timer. |
|
Kenmore 500 |
Wiring |
|
|
|
Kenmore Higher Topload |
Door locked blinking (freeze) => Bad
Actual |
|
|
WP Duet |
Press n hold Speed Spin 5 nds 3
times to have Error Code or Ctrl on/Drain Spin/No spin then hit options
button 4 times. |
Too much
noisy, F02=SUD=> water pump |
| |
Diagnostic mode
Control on/ Drain_Spin/No spin/Option (4 times with bips) => C:00 ...details
test |
| |
F11 : 3 blue wire left right next
to the data cable not good contact. Check inlet valves [200_1kΩ,
Water counter [0Ω] |
| WP Duet Steam |
Quick
diagnostic : Rinse/Spin (dial)/ No Spin (Spin Speed)/ Deep Clean (hit 4
times/ 5 seconds), then It shows test from C:00 -> C:9 around 15mns. If
error, it shows a code |
| WP Cabrio |
F 51 : Hall sensor |
|
Spin SSor, Press Soil and hold 3s/ 3 times to
have error code |
| |
|
| SS |
Follow the Troubleshooting Link to diagnose
(Read well to see).
Not spinning in spite of empty: Ambient under 60 oF, warm up
to test, new PCB needed.* Not draining: check
hoses, water pump, circuit board |
| |
Top load with error 8E and reset the
cycle=> part needed DC93-00278B |
| Fisher Paykel |
ERROR
Codes (Mod GWL15US seen)): Power off, press and hold the Wash Temp Down
button and then push the power button until the machine gives 2 short beeps
and lights up. Now press the Spin Speed
Up button three times so that the Hold and Slow LEDs are illuminated.
The eight wash progress LEDs will show the error code. Which ones are
illuminated from LEFT to RIGHT? Example (1st, 5th, 8th) |
| Amana |
Door Locked blinking=> Actuator |
|
|
|
| Frigidaire |
Mod
FAFW3801*** |
|
Start + Cancel => quick test (error code) |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
