Test  Error Codes (1) , (2)	Mod	Code	Problem	Could be
	Belt replacement			from the back panel. Not from
ASKO

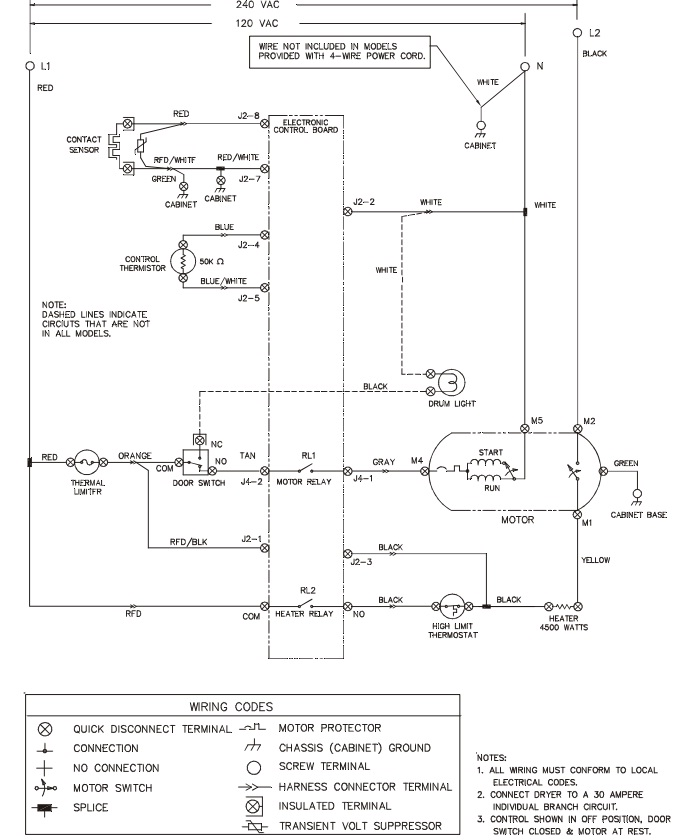

Frigidaire	Electrical   Gas Wiring
GE stackable	DSXH47EG1WW	: test heater: Yl [motor block terminal]_ Bl [2 wire connector to MB]=11_15Ω
GE	3 stars screw	Heater	WH_orther color (opposite side) of a 4 terminal sensor [42Ω] connecting to High Limit T'stat,  under 37Ω=> bad. This model has heater with double coils [42Ω=21Ω*2]. cost $85 for heater. Move drum forward to get the drum out.
Fisher Paykel	Top load dryer	Run	Not heating	pry 2 small plastic knobs both side, release 4 screws, press reset red switch at bottom. Try, not working, continue check other elements
LG manual	Not turn on but interior light: check T'stat fuse, door switch, ctrl board.
Maytag Performa	Old		No power	Thermo fuse closed to heater or Timer
KM new model	Turning+not heat: T'stats, heater are OK=> Contrl board is bad

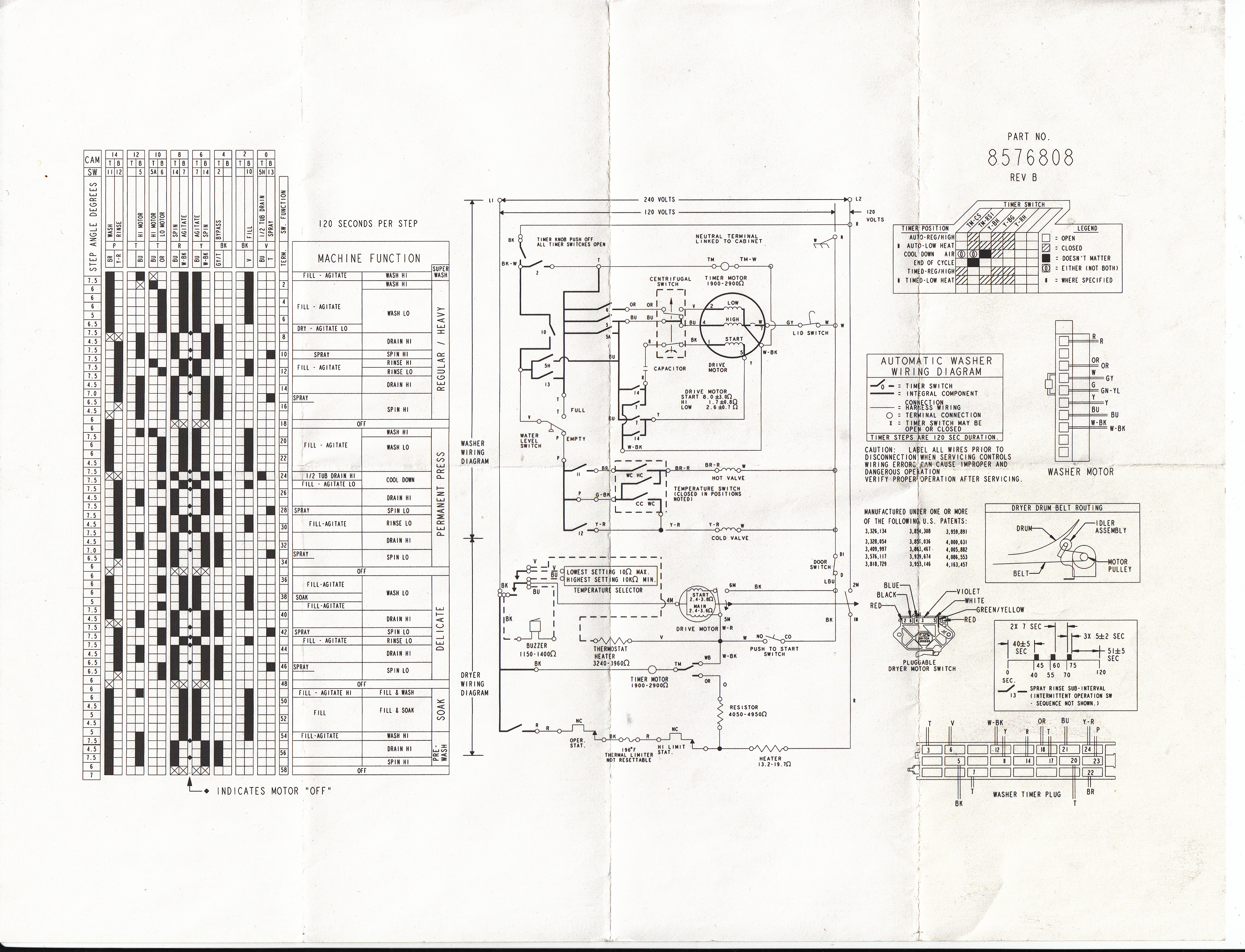

KM Stackable	Wiring

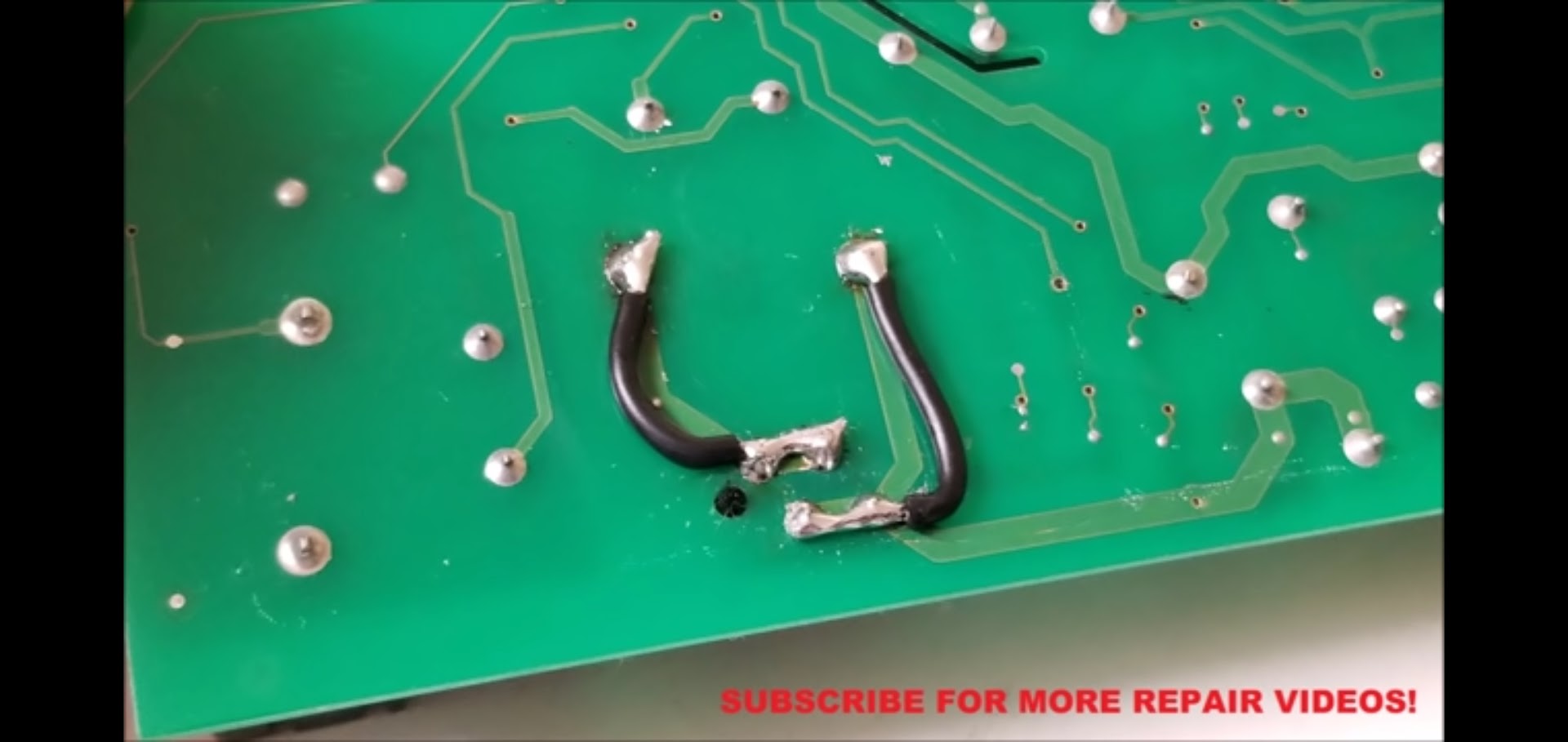

Sears/Kenmore HE3_ F01 Error code	Bad board: soldering between relay (bad pin) and K2 (good pin)
WP Duet	Remove ctrl panel: release 4 screws in the back; Remove drum: release one side of cabinet
	Motor not working+Not heating+Counting down: fuse, Control board

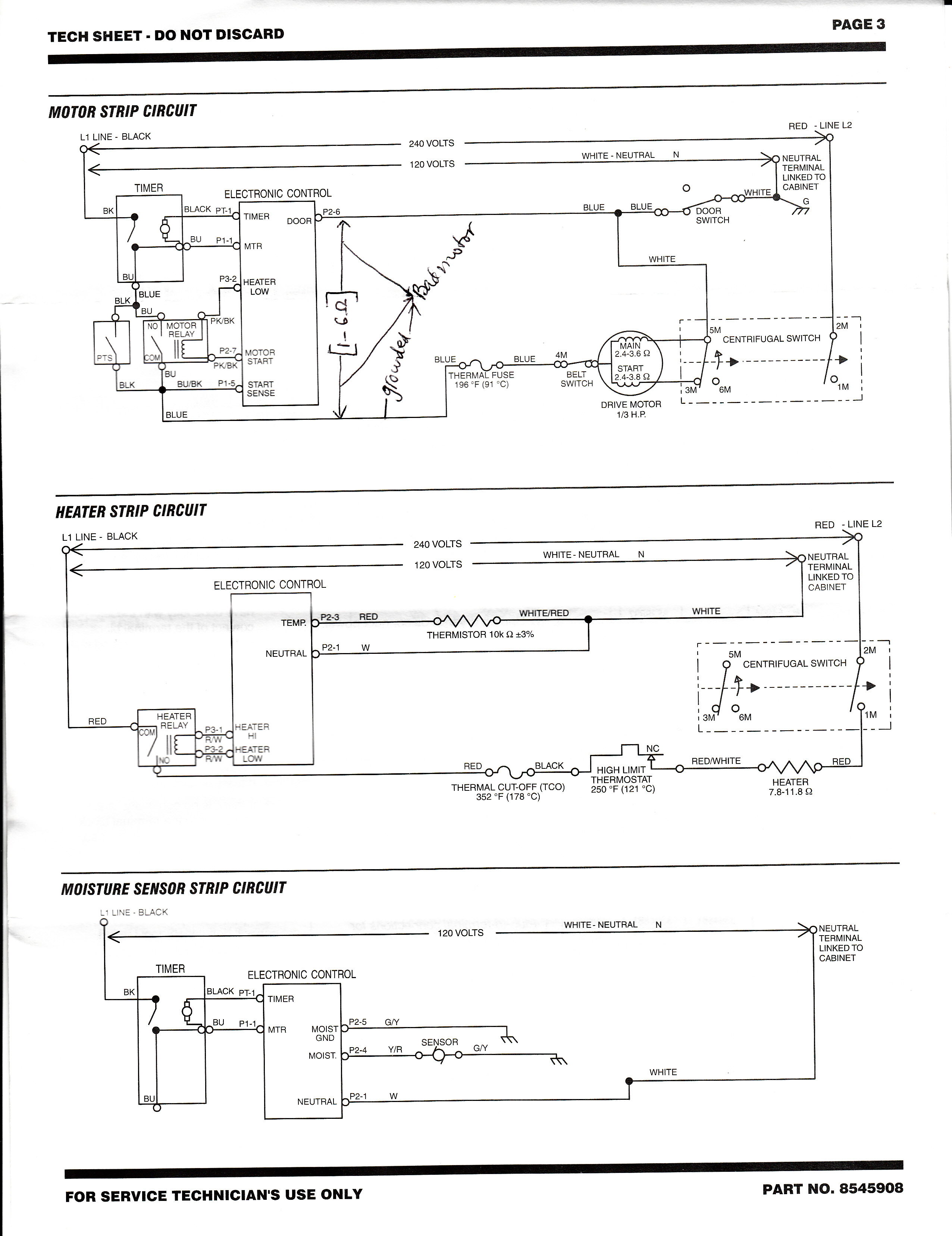

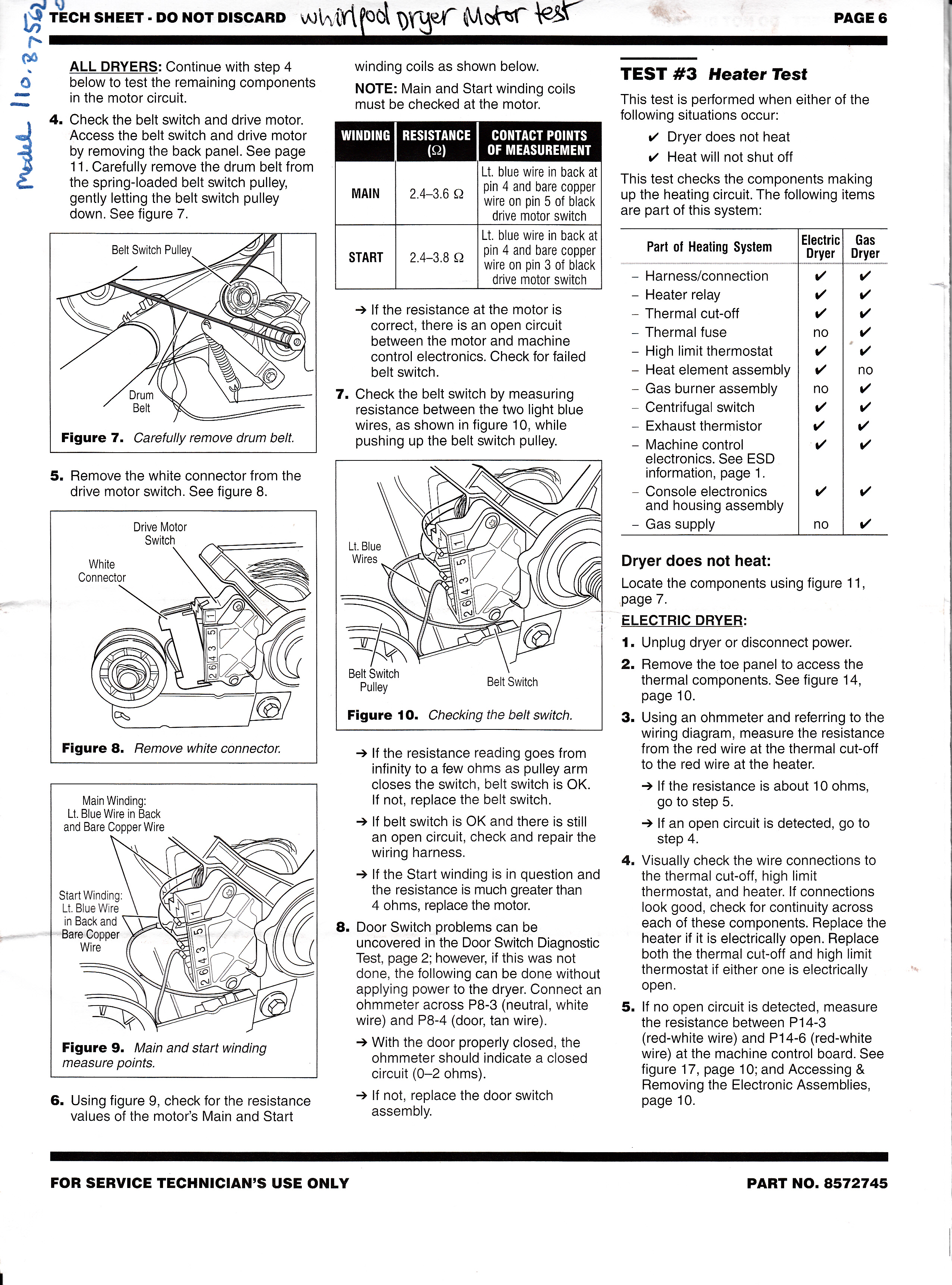

WP electric	Most new model	Thermal fuse is wired in series with drive motor, wiring, Motor test FrontlintWiring, Motortest2, W10436308.pdf Analog Timer Timer WPW10185982
	Count down, not run=> fuse, contrl board, motor;
WP  F01 Error
WP electric old model	Not heat: check timer: BK_BU/BK_RD must be continuity, The last is dryness ctrl board (2 resistors look bad color 8558178)
WP electric	Autodry not move:	240v inlet at dryer motor=>Tmer OK, Cycling T'stat bad or vice versa

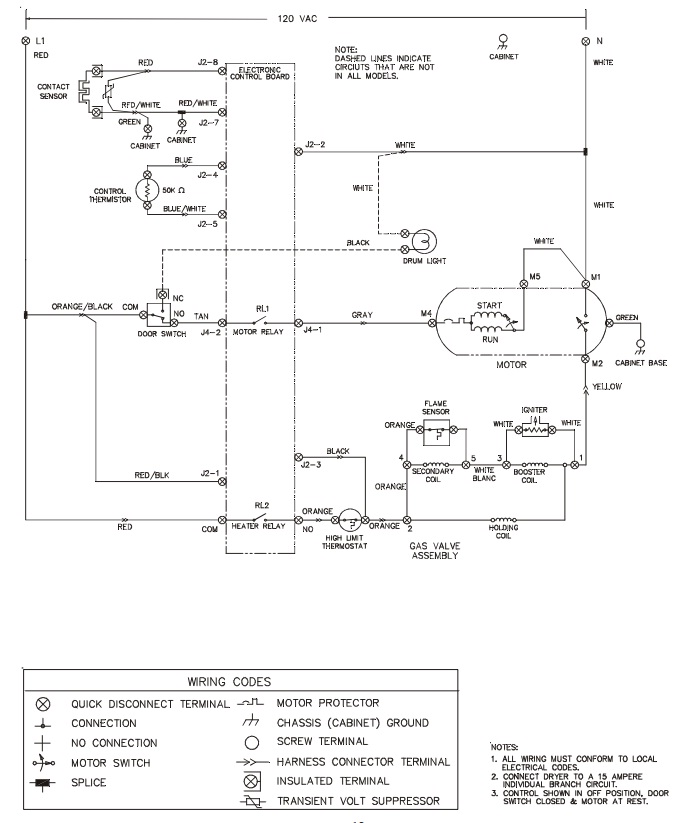

Frigidaire gas	Sequences: Cạch rất lớn igniter turn on, Cạch gas on, cạch gas off

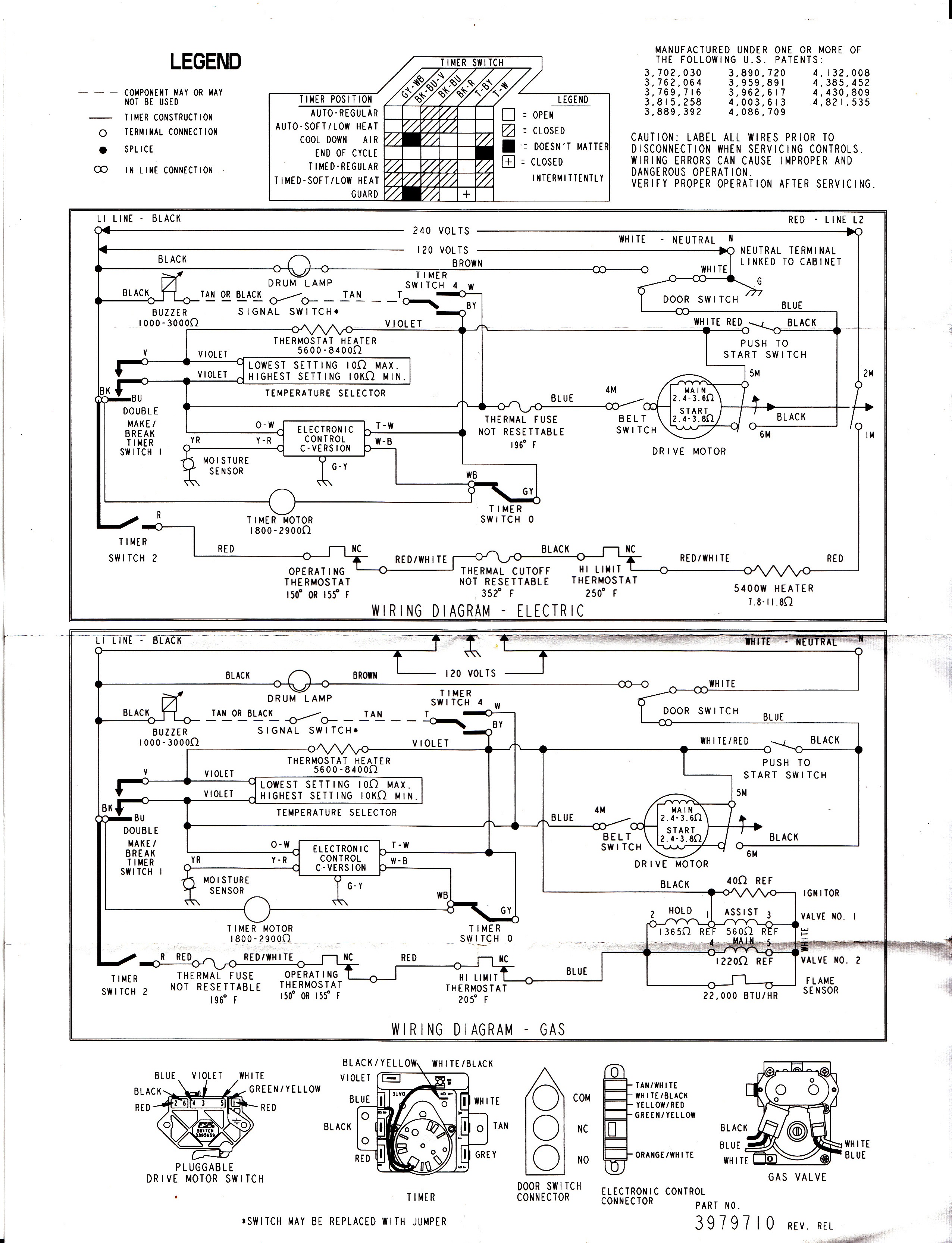

WP gas	KenmoreEllit, Amiral		Not heating	(1))Gas valve solenoids: 2 pin=[1kΩ_ 2kΩ]; 3 pin=> 1_3=[500_1kΩ]; 1_2[1.3KΩ]; (2) Flame sensor= 0Ω; igniter [60Ω]; 2 wire coming down=110V; Heater Relay on ctrl panel, Circuit Board, Timer, Thermal fuse ( is wired series with gas valve, wiring)
SS Electric	Access: Top panel, pry and lift up out the display screen, remove two screws outside in lint filter, lift up the door out and lay on top.
SS Electric	Not run, Power ok	: Thermostat on blower, motor safety switch, Control board,
